A storm rolls through, the lights flicker, and the power comes back. Then the smart thermostat starts acting strange, the refrigerator stops cooling the way it should, and the HVAC unit trips its breaker for the first time. That sequence is a power surge moving through the panel and hitting every circuit at once.
Dr. Watts Electric installs whole-home surge protection for homeowners and businesses across Bell County as part of our full Licensed Electricians in Bell County, TX services, using panel-mounted devices that stop incoming surges before they reach appliances, HVAC equipment, and electronics.
The most important step in protecting a home is installing a surge protective device, known as a Type 2 SPD, at the main electrical panel. It mounts directly inside or next to the panel and connects to the main bus, monitoring every circuit in the house.
When a surge arrives, the device activates in under a nanosecond and redirects the extra voltage to ground before it reaches any circuit. Texas follows the National Electrical Code 2020, and under Section 230.67, new electrical service installations must include a surge protective device, so a recently upgraded panel may already be required to have one.
A Type 2 SPD stops most surges, but it has a limit. A direct lightning strike on a utility transmission line can send a surge exceeding 10,000 volts down the line, a scenario IEEE Standard C62.41 classifies as a Category C event that a Type 2 device alone may not fully absorb.
A Type 1 SPD installs at the service entrance, ahead of the main breaker, and catches the largest surges as they enter the home. What gets past it then hits the Type 2 device inside the panel, and together the two bring voltage down to a safe level. This two-stage setup fits homes with high-value electronics, home servers, or medical equipment, along with rural properties that see large voltage swings after outages.
An HVAC system is the most surge-vulnerable appliance in most homes. Every time the compressor starts, it creates a voltage pull, and when it shuts off, the voltage snaps back, a cycle that repeats dozens of times a day during Central Texas summers.
Many HVAC manufacturers void surge-related warranty coverage when no hardwired SPD was installed at the time of damage, and a plug-in power strip does not meet that standard. We install a hardwired surge protective device directly at the Air Conditioning Services in Bell County, TX disconnect, sitting between the utility power and the compressor to absorb spikes before they reach the unit’s electronics.
Smart thermostats, door locks, security cameras, and Wi-Fi routers all run on low voltage but sit among the most sensitive electronics in a home. A surge that does not destroy a smart device outright can still corrupt its firmware, wiping stored settings or disabling camera recordings.
A whole-home SPD at the panel stops external surges before they reach these devices. Homes with a home server, a full theater setup, or a business-from-home arrangement often add point-of-use hardwired protection at those specific circuits for a second layer of coverage.
CPAP machines, oxygen concentrators, infusion pumps, and home dialysis systems all depend on steady power, and a surge that disables one at two in the morning is a medical emergency rather than an inconvenience.
We install dedicated hardwired protection directly on the circuit powering the equipment room, and for the most sensitive equipment we help coordinate uninterruptible power supply placement so the device stays on through a momentary interruption. This service matters especially for Fort Cavazos veterans and active-duty families managing medical equipment through VA benefits, since documented cause-of-loss paperwork from a licensed electrician speeds up replacement claims.
Restaurants lose commercial refrigeration, retail shops lose point-of-sale systems, and medical offices lose imaging equipment when a surge hits, and any one of these failures can close a business for days. Our Commercial Electrical Services in Bell County, TX team sizes and installs commercial-grade Type 1 and Type 2 SPD systems for retail spaces, offices, and multi-unit properties.
Properties along the I-35 corridor face an added risk, since large warehouses share utility transformer capacity with nearby businesses, and heavy equipment cycling on and off creates micro-surges that residential-grade devices are not built to handle. Commercial-grade units carry a higher joule rating and a faster response time built for those conditions.

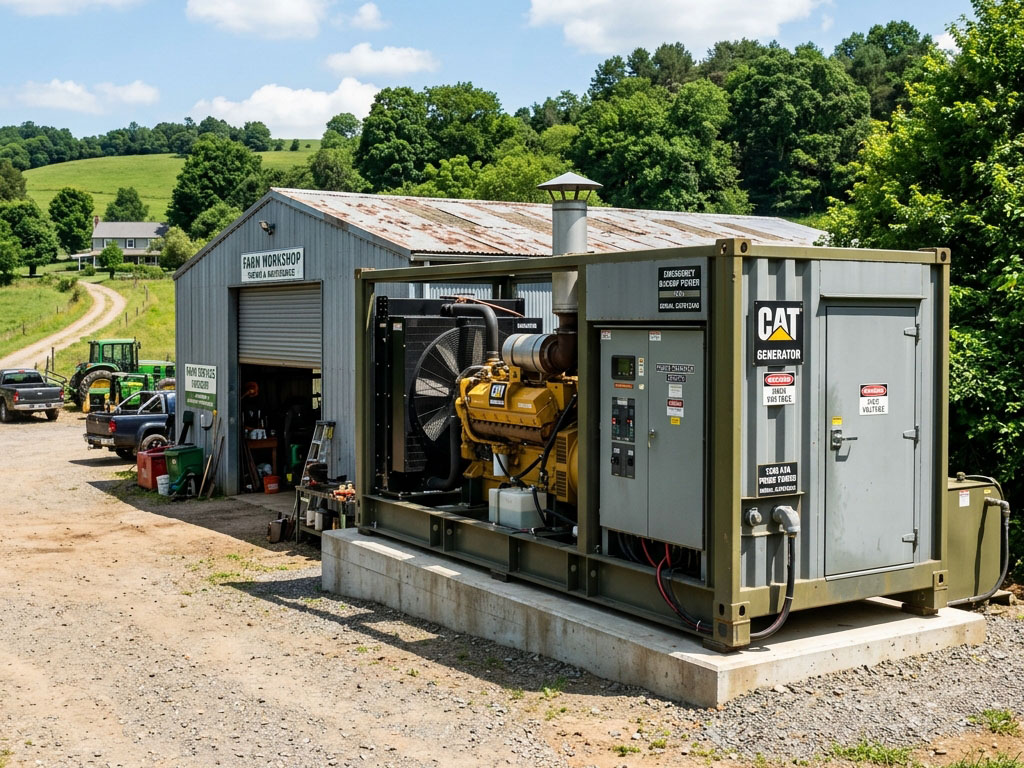

When a standby generator starts and the automatic transfer switch shifts a home back to utility power, that transfer can create a voltage spike inside the panel. A whole-home SPD absorbs that spike before it reaches appliances, which is one reason we recommend pairing surge protection with Generator Installation in Bell County, TX as part of a complete storm-prep plan.
You call or submit a request describing your home and current panel
We assess your panel and service entrance to confirm which devices fit your home
We install the device, confirm grounding and bonding, and run a function test before leaving
We install the device, confirm grounding and bonding, and run a function test before leaving
Before installation, a storm can knock power out for twenty minutes, and when it returns in a spike, a smart thermostat freezes, a refrigerator’s control board throws an error, and the HVAC trips its breaker and will not reset. Repair quotes for a refrigerator board and an HVAC control board can run well over a thousand dollars combined, often with no warranty coverage since no hardwired protection was in place.
After installation, the same storm passes through and the whole-home SPD absorbs the restoration spike before it touches any circuit. The thermostat comes back online normally, the refrigerator resumes its cycle, and the HVAC starts without issue. Most homeowners never notice the surge happened at all.
Dr. Watts Electric installs whole-home surge protection across Belton, Temple, Salado, Harker Heights, and Killeen. Our Bell County Service Area page lists full coverage details.
Homes along the I-35 corridor in Belton and Temple deal with the micro-surge issue caused by shared commercial transformer load more than homes on quieter residential feeders elsewhere in the county.
Over 40 years of Central Texas electrical experience behind every recommendation
Familiarity with NEC 2020 Section 230.67 and what it requires on new panel installs
Documentation that supports HVAC manufacturer warranty claims after a surge
A 100% satisfaction guarantee on every installation
Rated 4.9 out of 5 by more than 500 Bell County homeowners
Cost depends on your panel type, service entrance setup, and whether you need point-of-use protection on circuits like HVAC or medical equipment. We provide a flat-rate written estimate after a site visit.
A power strip only protects what is plugged directly into it. A whole-home surge protector installs at the main panel and covers every circuit, handling far larger surge events than a plug-in strip can absorb.
A Type 2 SPD installs inside the panel and stops surges from the utility line or from inside the home. A Type 1 SPD installs at the service entrance and stops the largest surges, including direct lightning strikes on the transmission line.
Yes. The compressor, control board, and variable-speed motor can all take damage from internal or external surges, and many manufacturers will not cover that damage under warranty without a hardwired SPD in place.
Yes. NEC 2020 Section 230.67 requires a surge protective device on new electrical service installations in Texas, and we check for this during every panel inspection.
Most installations take one to two hours. A dual-mode Type 1 and Type 2 installation may take two to three hours depending on service entrance access.
Yes. It stops external surges before they reach the circuits powering a smart thermostat, security cameras, or a home automation hub.
Every surge protection installation carries proof of licensing and insurance, and each job includes a written flat-rate estimate before work begins along with a post-install test report. If something is not right after we leave, we return and correct it at no additional charge.
Every storm that moves through Bell County is another chance for a surge to reach your panel. Reach us at (254) 939-3534 or request a free on-site assessment online, and we will size and install the right level of protection for your home or business.
